How it Works: DIABLO Bridles

The first time you use a RAM Air Kite, the DIABLO in our case, it can be pretty intimidating, with all those bridles everywhere, 4 full lines total A + B + C + Brakes (D), the speed system, etc... Here is a clear schema of the whole setup, how it works and what to do if the Diablo does not fly properly because one line has stretched too much.

The first time you use a RAM Air Kite, the DIABLO in our case, it can be pretty intimidating, with all those bridles everywhere, 4 full lines total A + B + C + Brakes (D), the speed system, etc…

Here is a clear schema of the whole setup, how it works and what to do if the Diablo does not fly properly because one line has stretched too much.

Download in PDF: DIABLO Bridles Spec 2016

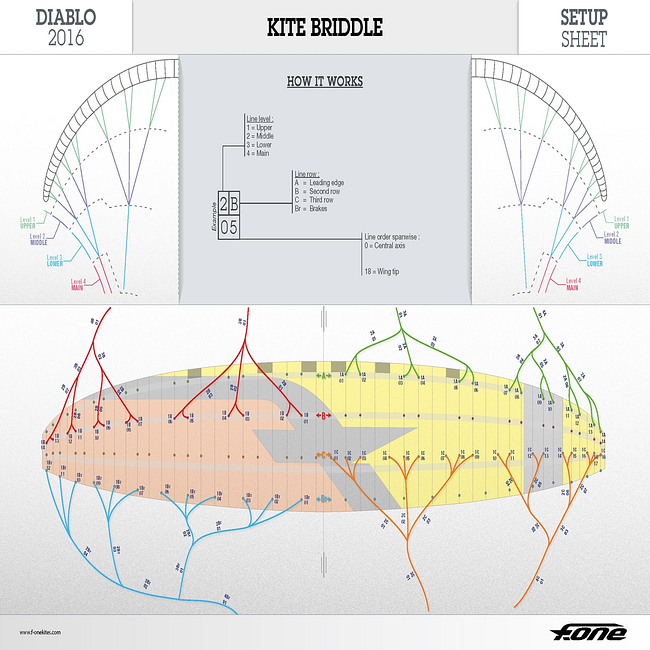

Diablo_bridle_2016_1

Diablo_bridle_2016_2
